Description

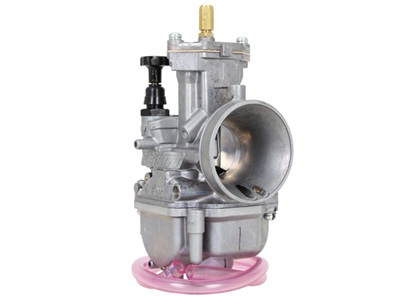

Genuine Keihin PWK 28mm Carburetor for Yamaha Blaster
The Genuine Keihin PWK 28mm Carburetor is an excellent performance upgrade for the Yamaha Blaster YFS200. It provides quicker throttle response, improved airflow and greater tuning flexibility than the original Mikuni VM26 carburetor.
Unlike inexpensive imitation carburetors, this is a genuine Keihin PWK manufactured to provide consistent fuel metering and dependable performance. Precise machining and quality internal components make it easier to establish reliable jetting throughout the throttle range.
Why Upgrade to a Keihin PWK 28mm Carburetor?
The PWK’s semi-flat slide design produces strong air velocity and responsive fuel delivery. The 28mm bore is large enough to support common Yamaha Blaster performance upgrades without sacrificing the low-speed response needed for trail riding.
It is an excellent choice for:
- Stock Yamaha Blaster engines
- Trail-ported cylinders
- Aggressive trail builds
- Aftermarket exhaust systems
- High-flow air filters and modified airboxes
- Performance reed valves
- Modified cylinder heads
- Mild big-bore combinations
Every engine combination is different, so final jetting must be adjusted for the engine modifications, exhaust system, airbox configuration, temperature and elevation.
Genuine Keihin Quality
There is a major difference between a genuine Keihin carburetor and a low-cost PWK-style copy. Genuine Keihin carburetors are manufactured with accurately sized fuel passages, consistent slide fit and replaceable Keihin tuning components.
These details help provide:
- Crisp throttle response
- Consistent fuel delivery
- Predictable jetting changes
- Easy access to genuine replacement jets and needles
- Reliable performance at low and high engine speeds
- Better tuning support for modified engines
Yamaha Blaster Installation Options
The Keihin PWK 28mm carburetor is not an exact replacement for every original Yamaha Blaster connection. Select the optional parts needed for your installation before adding the carburetor to your cart.
Available options include:
- Carburetor only
- Thumb-throttle cable
- Flange adapter for the stock air-cleaner joint
The optional flange adapter allows the PWK carburetor to connect to the original Yamaha Blaster air-cleaner joint. The optional thumb-throttle cable provides the correct cable arrangement for operating the PWK slide from the factory-style thumb throttle.
Always verify the intake boot, air-cleaner connection, cable routing and slide operation before starting the engine.
Carburetor Jetting
A performance carburetor must be jetted for the individual machine. Engine porting, compression, pipe selection, reeds, air-filter setup, elevation and outside temperature can all change the required jetting.
Begin with a safe, rich setting and make one adjustment at a time. Check throttle response and spark-plug condition before operating the engine under sustained load. Running a two-stroke engine with excessively lean jetting can cause overheating and serious engine damage.
Use the KOR Yamaha Blaster Keihin PWK 28mm Jetting Calculator as a starting point, then confirm the final settings through careful testing. Comes with 150 main jet and 48 pilot.
Features
- Genuine Keihin PWK carburetor
- 28mm bore
- Responsive semi-flat slide design
- Excellent throttle response
- Wide range of available jets and needles
- Suitable for stock and modified Yamaha Blaster engines
- Optional thumb-throttle cable
- Optional stock air-cleaner joint adapter
- Professional performance upgrade for the Yamaha YFS200
Important Installation Notice
Carburetor jetting and setup are the responsibility of the installer. Inspect the throttle system carefully and confirm that the slide opens fully and returns immediately when the thumb throttle is released. Do not operate the machine until the throttle, fuel system and intake connections are working correctly.
