KOR Yamaha Blaster Exhaust Block Off Plate
The KOR Yamaha Blaster exhaust block off plate is designed to seal the exhaust outlet when performing a two-stroke engine leak down test. Properly sealing the exhaust port allows you to pressurize or apply vacuum to the engine and check for air leaks that can cause poor performance, difficult starting, inconsistent jetting or engine damage.

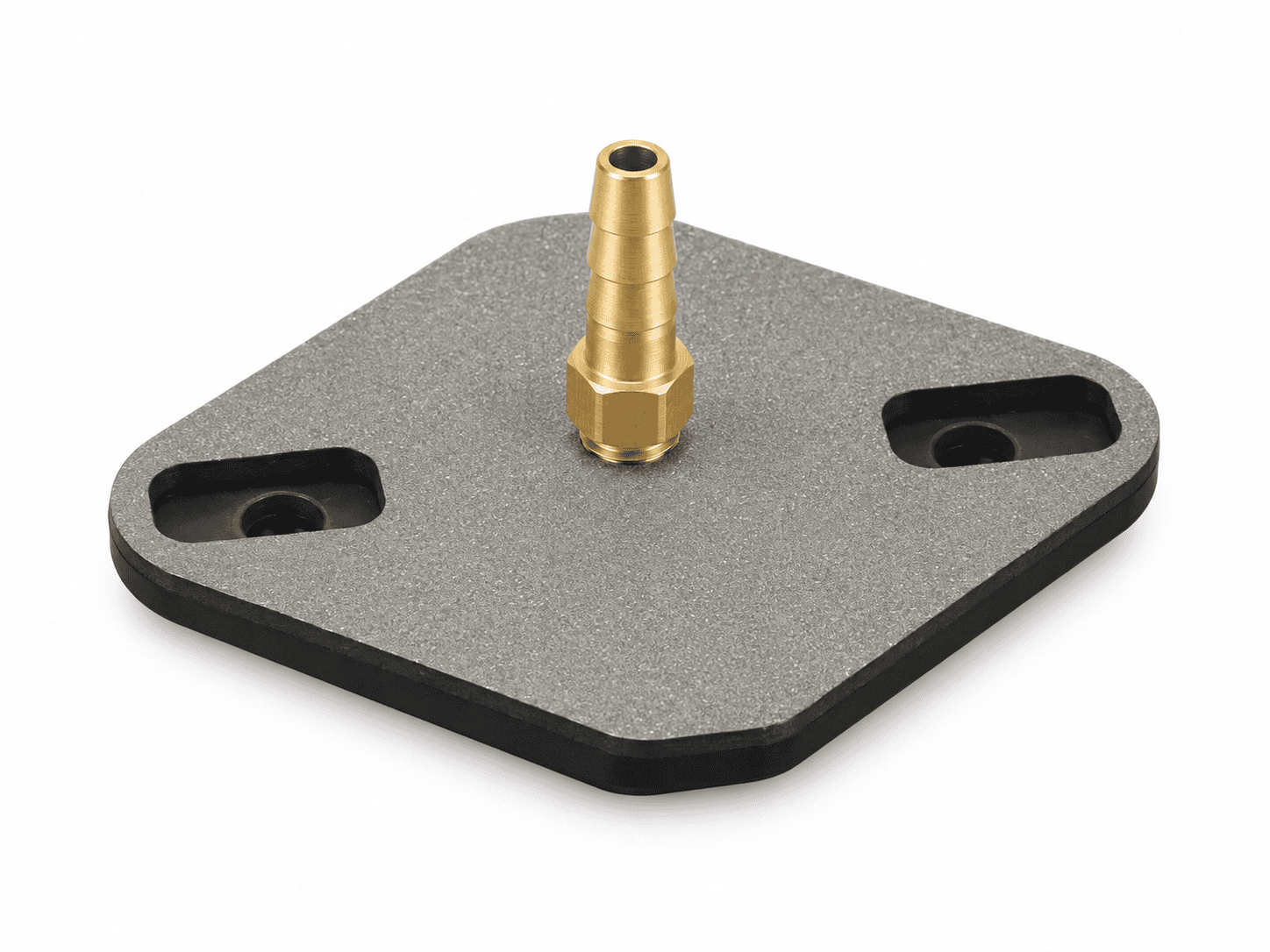

Manufactured by Ken OConnor Racing, this reusable testing tool features a durable metal plate, a sealing gasket and a brass hose-barb fitting. The elongated mounting slots allow the plate to be secured at the cylinder’s exhaust flange using the appropriate mounting hardware.
Why Leak Down Testing Matters
A two-stroke engine must have a properly sealed crankcase to operate correctly. An air leak can create a lean fuel mixture and may lead to overheating, hanging idle, difficult starting, inconsistent tuning or piston and cylinder damage.
A leak down test can help identify leaks around the:
- Crankshaft seals
- Cylinder base gasket
- Reed cage and intake gaskets
- Crankcase mating surfaces
- Clutch cover gasket
- Oil-injection fittings or block-off components
- Other sealed engine joints
Product Features
- Designed for Yamaha YFS200 Blaster engines
- Blocks the cylinder exhaust outlet during leak down testing
- Manufactured by Ken OConnor Racing
- Durable metal construction
- Replaceable brass hose-barb fitting
- Integrated sealing gasket
- Slotted mounting holes for convenient installation
- Reusable engine diagnostic tool
- Suitable for pressure and vacuum testing
How It Is Used
Remove the exhaust pipe and secure the KOR exhaust block off plate over the cylinder’s exhaust outlet. Connect the appropriate test hose to the brass barb, seal the intake and other required openings, and perform the leak down test using a regulated testing system.
Always use low, controlled pressure and follow proper two-stroke leak down testing procedures. Excessive pressure can damage engine seals.
Built by an Engine Machine Shop
This Yamaha Blaster exhaust block off plate is manufactured by Ken OConnor Racing, a professional motorcycle and ATV engine machine shop. It is made for engine builders, repair shops and Yamaha Blaster owners who want a dependable way to check engine sealing before final tuning or operation.
A fresh engine should always be leak-down tested before being placed into service. Finding a small leak during assembly can prevent a much more expensive engine failure later.
What does a Yamaha Blaster exhaust block off plate do?
It seals the cylinder’s exhaust outlet so the engine can be pressurized or placed under vacuum during a leak down test.
Why should I leak-down test my Yamaha Blaster engine?
A leak down test can reveal crankshaft seal, gasket, intake and crankcase leaks that may cause a lean condition, poor performance or engine damage.
Can this plate be reused?
Yes. The metal block off plate is designed to be reusable. Inspect the gasket and hose fitting before every test.
Is this product manufactured by KOR?
Yes. This exhaust block off plate is manufactured by Ken OConnor Racing.
Does this plate perform the entire leak down test by itself?
No. The plate seals the exhaust outlet and provides a hose connection. A complete test also requires the engine’s remaining openings to be properly sealed and suitable regulated pressure or vacuum testing equipment.
